2004 Lima's automatic peeling line

LIMAS Step Peeler

Recently arrived, more information and photo's soon.

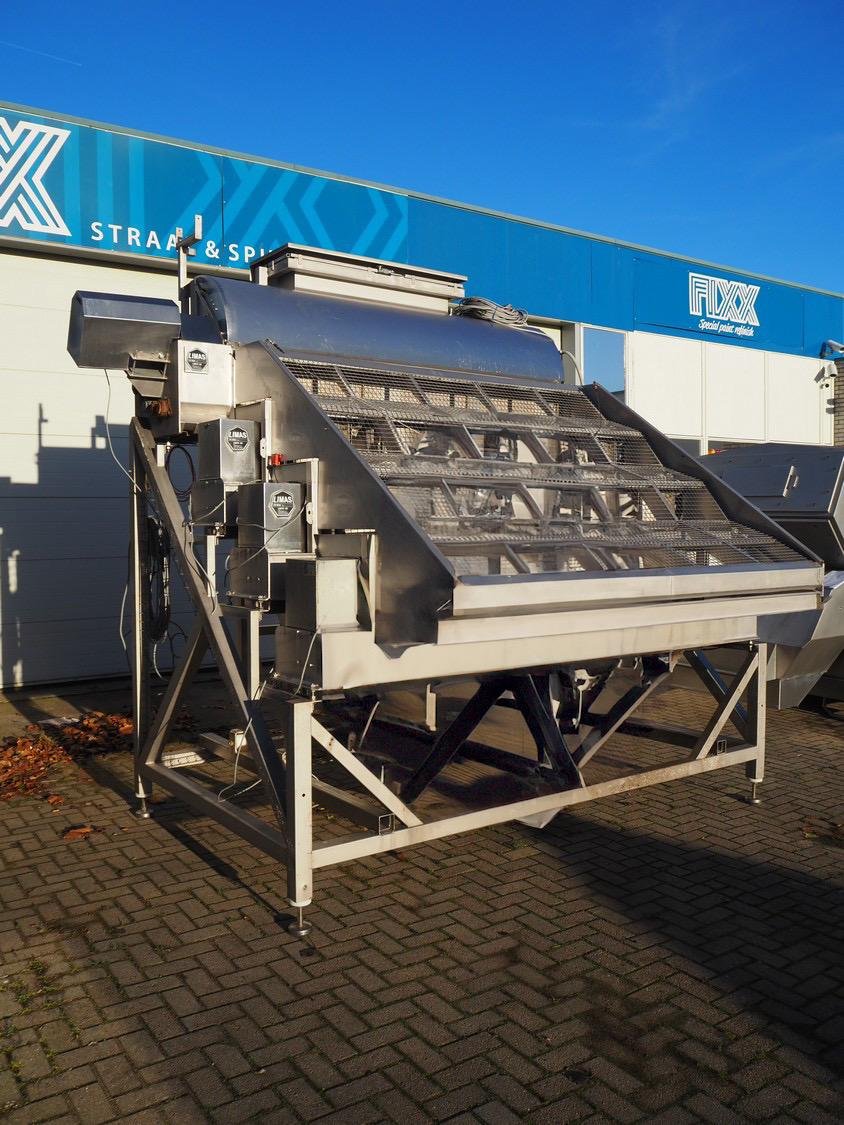

The LIMAS Step Peeler has a unique principle and construction. Designed to allow water-free peeling, the peeler is also compact but has a large capacity.

LIMAS AB potato peeler, model: L-924-6, year of construction: 2004

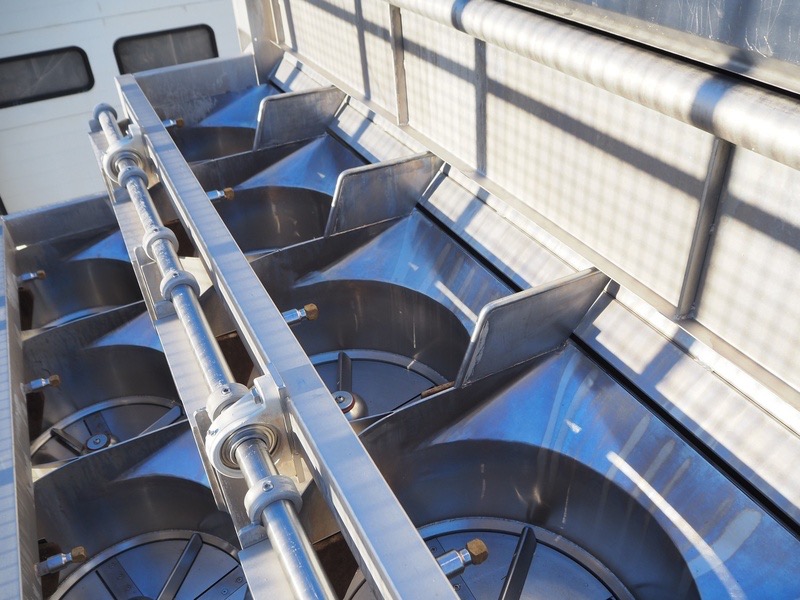

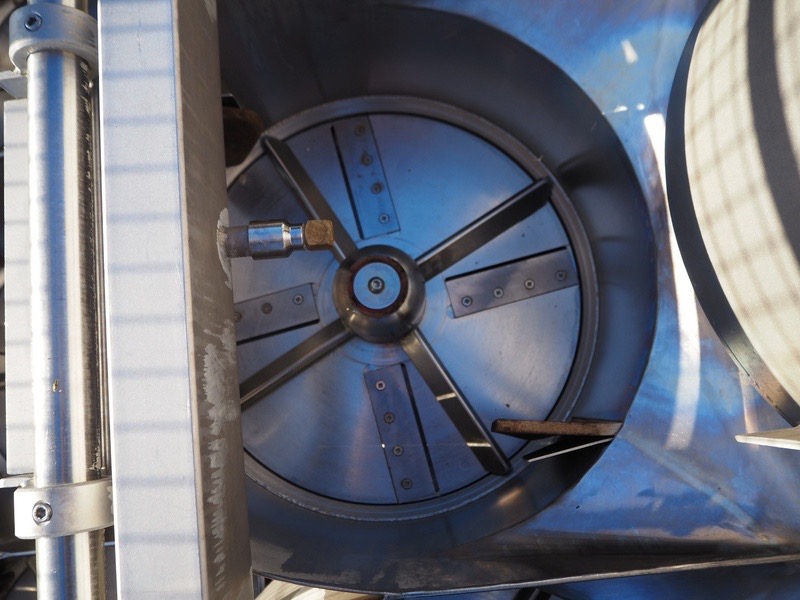

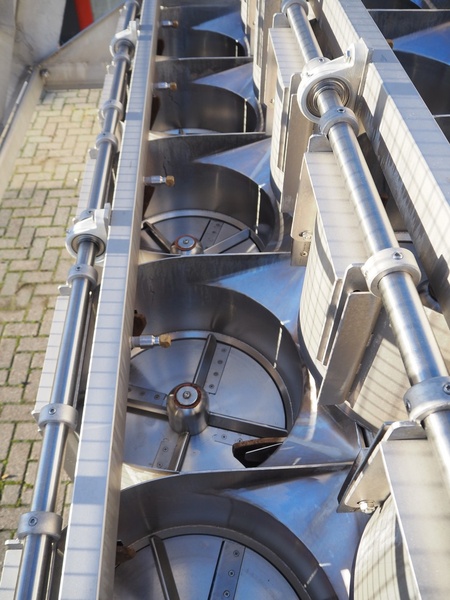

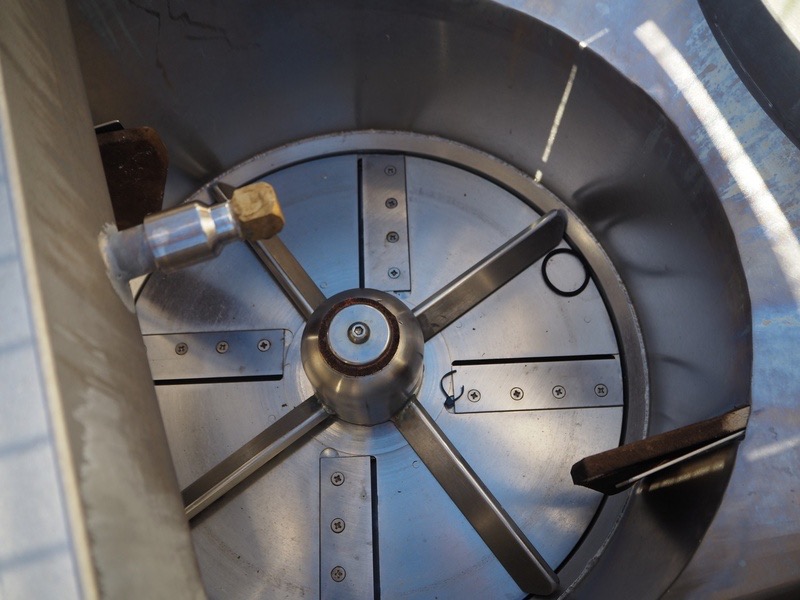

15 knife peelers, diameter drum: (15x) 400 mm, total dimensions:

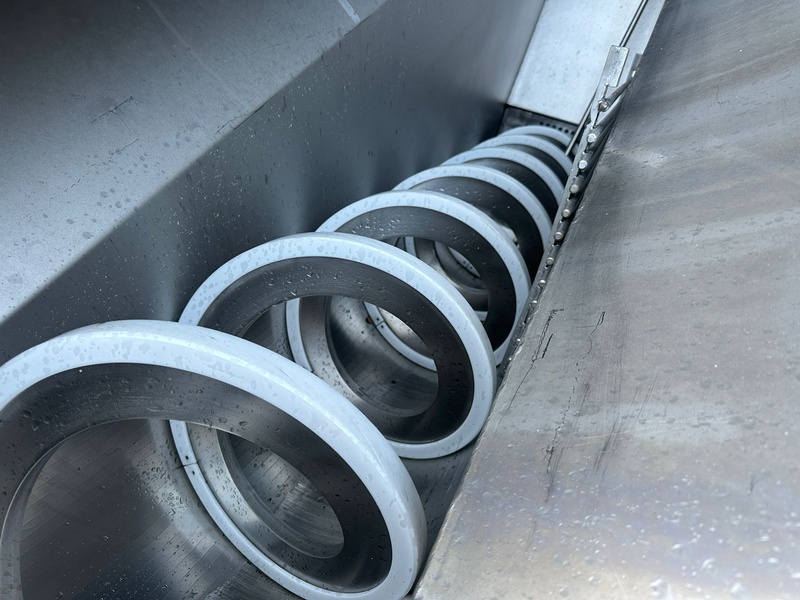

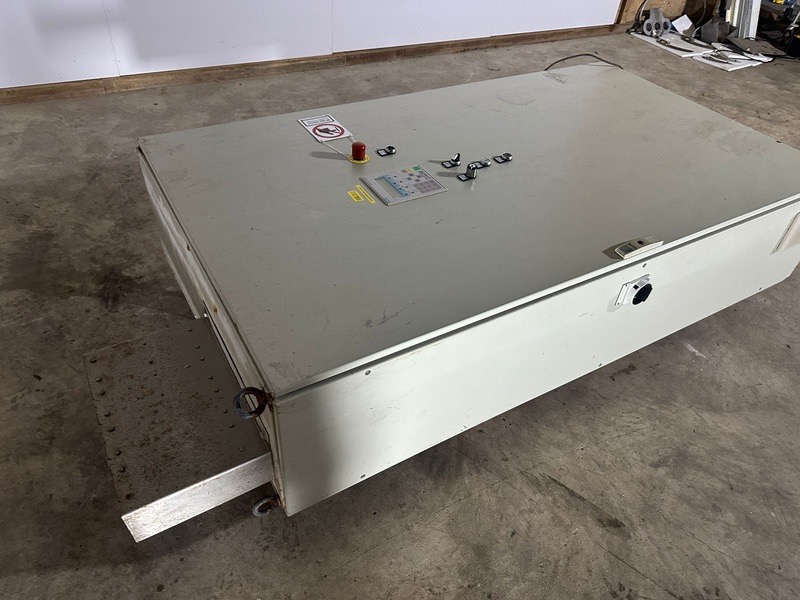

3800 mm x 2900 mm x 3480 mm. Including elevating screw and switch cabinet.

ADVANTAGES

• Higher capacity
• High yield
• Lower effluent costs
• Total control of peeling
• Less maintenance

FUNCTION

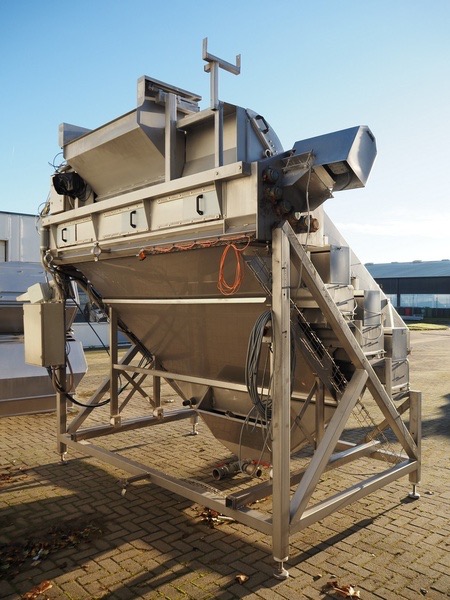

Product is pre-weighed by the batch hopper at the top of the machine. When the weight is correct and the first peeling step is empty, the weigh hopper door opens and the product is let in to start the peeling sequence. The product is then peeled in the first step for the time set by the operator.

When the peeling time is complete the door of step one opens to move the product into the second peeling step and the same procedure is repeated. For a two-step peeler, the peeling time in each step is double that of a four-step peeler.

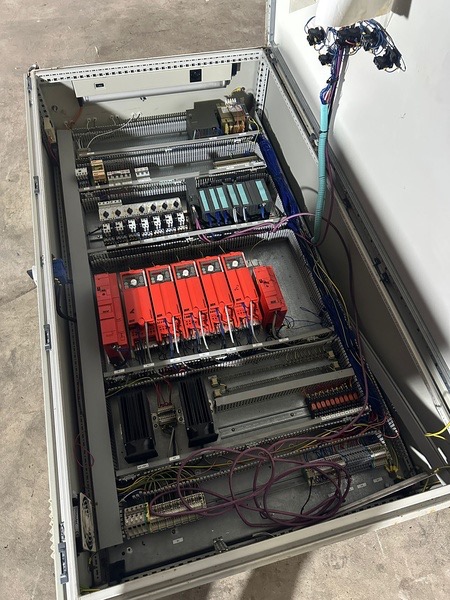

The peeling time and the speed of the peeling rollers is variable for each step, driven by frequency converters. This and all the other functions in the peeling sequence are controlled by a PLC.
